LTE Cat.1

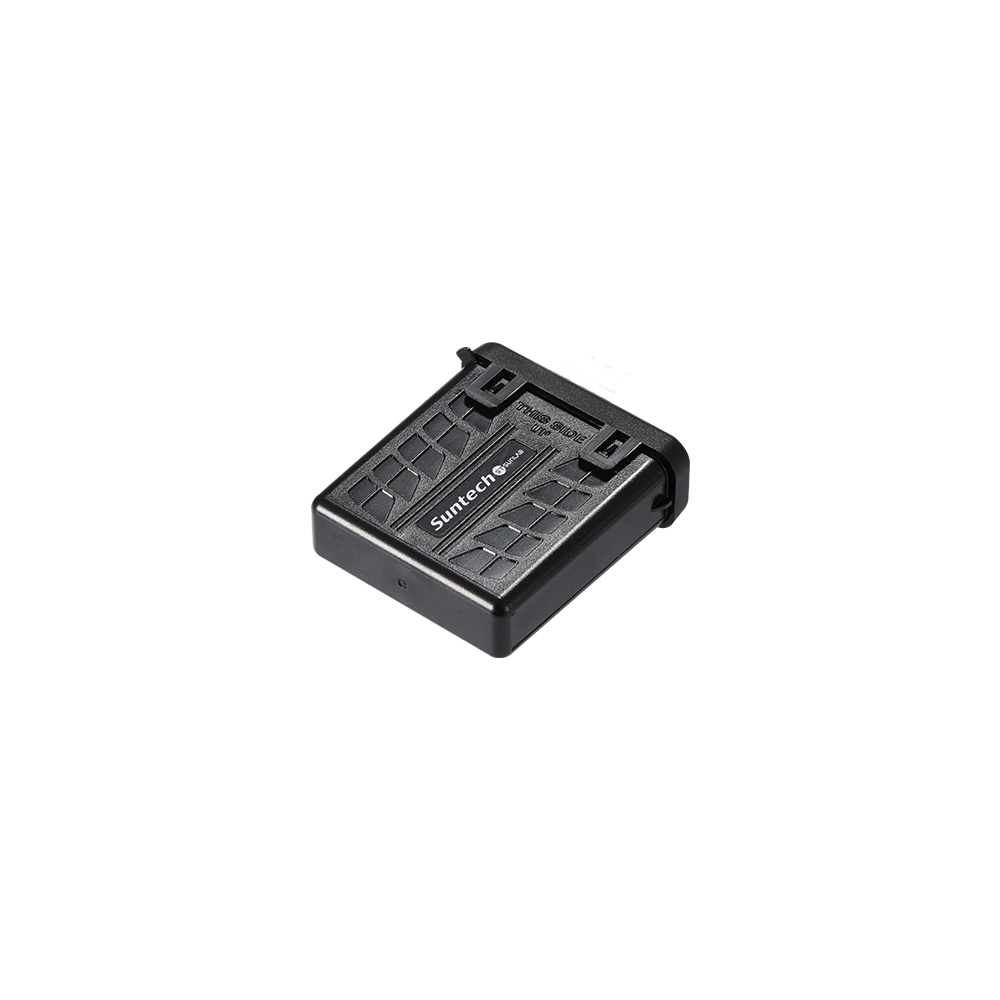

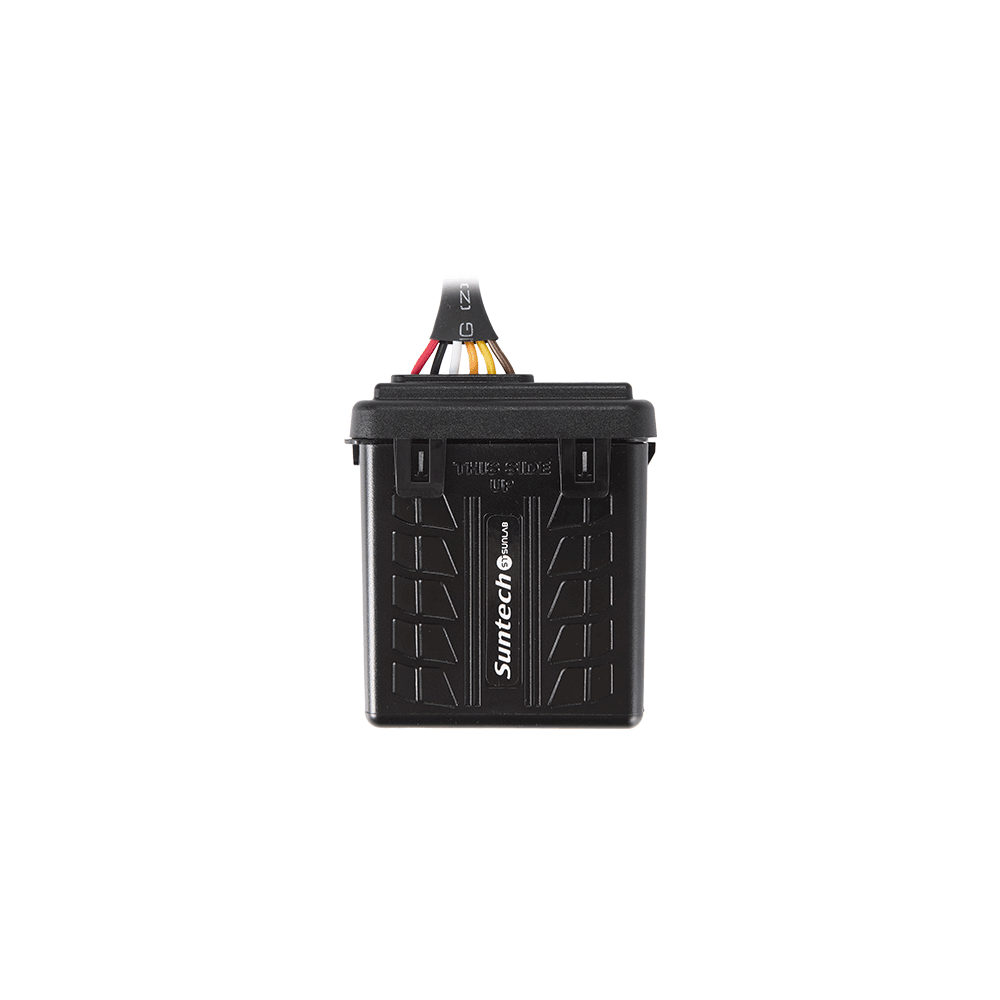

ST8210

  • Stable 4G communication for reliable tracking
  • GPS/LTE jamming detection for enhanced security
  • Compact and rugged IP67 design for tough environments
  • ST8210UMB
Request Sample
Features Specifications Option models Downloads Accessories

  • Stable operation on the Cat.1 network for fast and reliable communication

  • Multiple 5-pin I/Os supporting power, input, and output signal wiring

  • Jamming detection to identify and report GPS/LTE signal interference

  • DPA (Driving Pattern Analysis) and optional CR (Crash Reconstruction) for event insight

  • Virtual ignition detection using voltage level or motion sensing

  • Built-in 3-axis accelerometer for motion, impact, and driving behavior detection

  • Circular / Polygonal Geofence with flexible zone configuration options

  • Compact design with rugged IP67 housing for harsh environment deployment

Wireless Communication

  • Connectivity

    LTE Cat.1

  • Frequency

    LTE FDD : B1,B2, B3, B4, B5,B7, B28

  • Transmission Protocol

    TCP/UDP

  • Bluetooth

  • wifi

GNSS

  • Receiver Type

    GPS & Glonass
    GPS L1 band(1575.42MHz)
    Glonass L1 band (1601.71MHz) SBAS: WAAS, EGNOS, MSAS

  • Location Accuracy

    Accuracy* +/- 3m CEP *50%,2D RMS, -130dBm, >6 Sats.

  • Update Rate

    1Hz

  • Cold Start (TTFF)

    <35s, 15s (with EASYTM)

  • Warm Start (TTFF)

    <30s, 5s (with EASYTM)

  • Hot Start (TTFF)

    <1s

  • Tracking Sensitivity

    Tracking: -167Bm / Reacquisition: -161dBm / Acquisition: -149dBm

Physical

  • Dimensions

    61.2 * 53.2 * 20.8 mm

  • Weight

    76g

Hardware (Interface)

  • I/O

    5pin :
    1 pin (Ignition/Input)
    1 Input
    1 Output
    2pin (Ground, Power)

    Ignition
    - Ignition : 6 ~ 33V [ON], 0 ~ 5V [OFF]
    Output
    - Short-Circuit Protection,
    - Open drain output of up to 300mA
    - Available for Siren, Vehicle Blocking
    Input
    - Low detection
    - Input : 0.8 ~ 33V [High], 0 ~ 0.7V [Low] (protection ESD)
    Available for Panic button, Door sensor.

  • CAN Port

  • LED Indicator

  • Features

    Jamming Detection, Security Alarm, Emergency Alarm, Data Storage(up to 10,000 locations), Geo-fencing (Circular up to 999 points / Polygon up to 30 points), SIM Lock

  • Motion Sensor

    3-Axis Accelerometer

  • User Interface

  • SIM Card

    Nano SIM (4FF)

Battery/Power

  • Battery

    Rechargeable 3.7V : 220mAh (Li-Ion)

  • Power

  • Power Supply

    DC 8 ~ 33 V, * Main power +/- inversion protection.

  • Power Consumption

    Typical: 30 ~ 50 mA (3 min reporting) @12V
    Sleep mode: less than 5mA @12V
    Deep sleep mode: less than 3mA@12V

Environmental

  • Dust and Water Resistant

    IP67

  • Operating Temperature

    -30°C ~+85°C

  • Certification

    Anatel, TBD

  • Region

    LATAM, Brazil

Camera

  • CPU

  • OS

  • Forward Camera

  • Inward Camera

  • Memory

  • Mobile App

  • ETC
