LTE Cat.1

ST6952

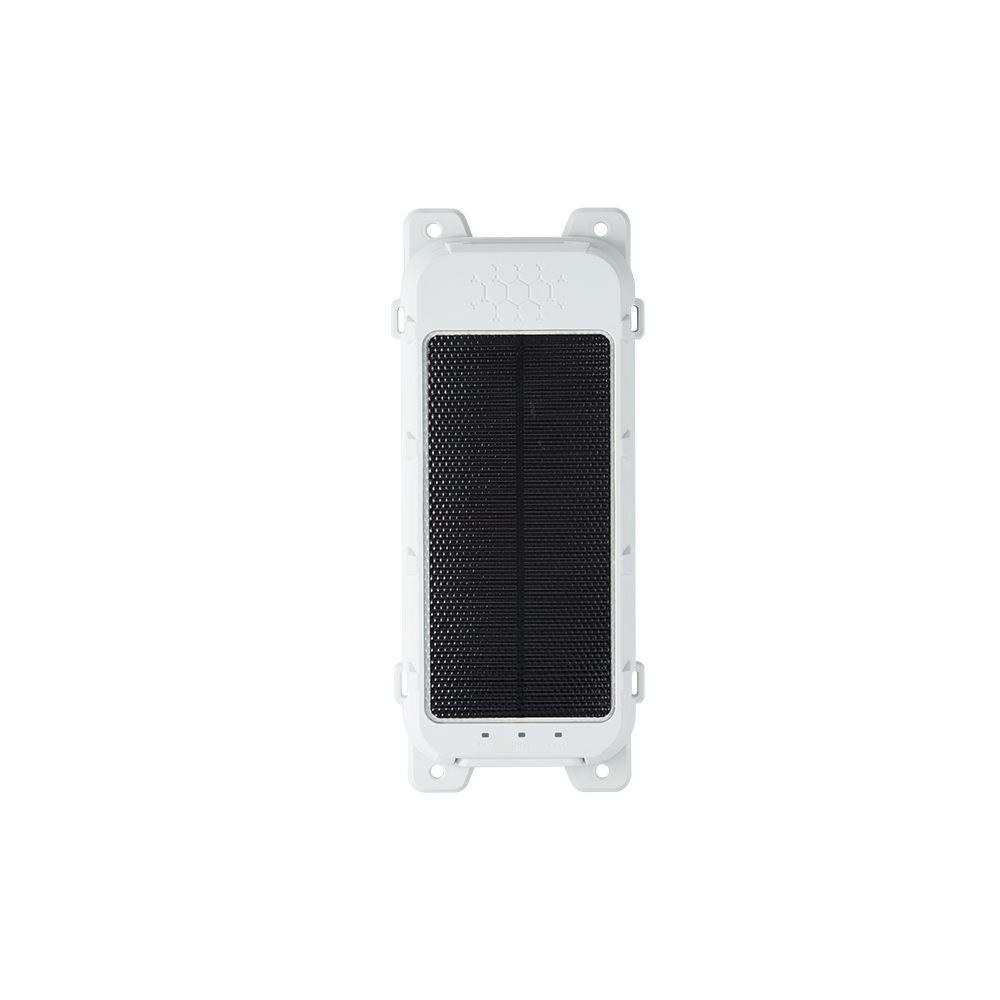

  • Cat.1 bis Solar Asset Tracker
  • The Most Rugged IP68-Rated Body
  • Wifi, BLE 5.3 Scan support
  • Rechargeable 12,000mAh Li-ion battery
  • Optional LoRa/RF Backup communication
Request Sample
Features Specifications Option models Downloads Accessories

  • LTE Cat.1 bis and multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS)

  • High-efficiency solar panel (Max 1.8W) and 12,000mAh Li-ion battery

  • Wi-Fi scanning for indoor location tracking / BLE 5.3 sensor scan support

  • C-type charging, SIM card insertion, and power on/off without disassembling the device

  • Optional LoRa/RF backup communication

  • IP68-rated rugged design for harsh environments

  • 6-axis sensor enables more precise motion detection

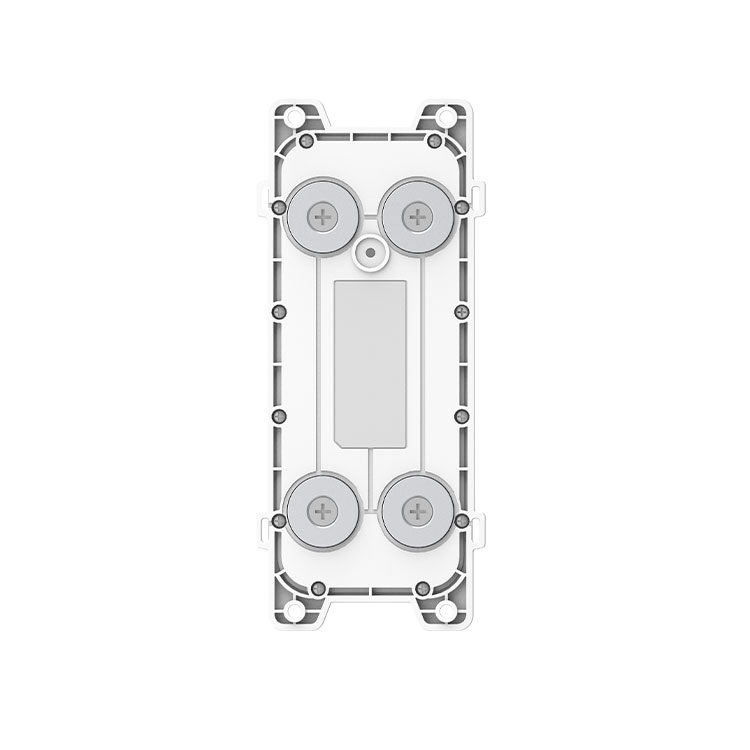

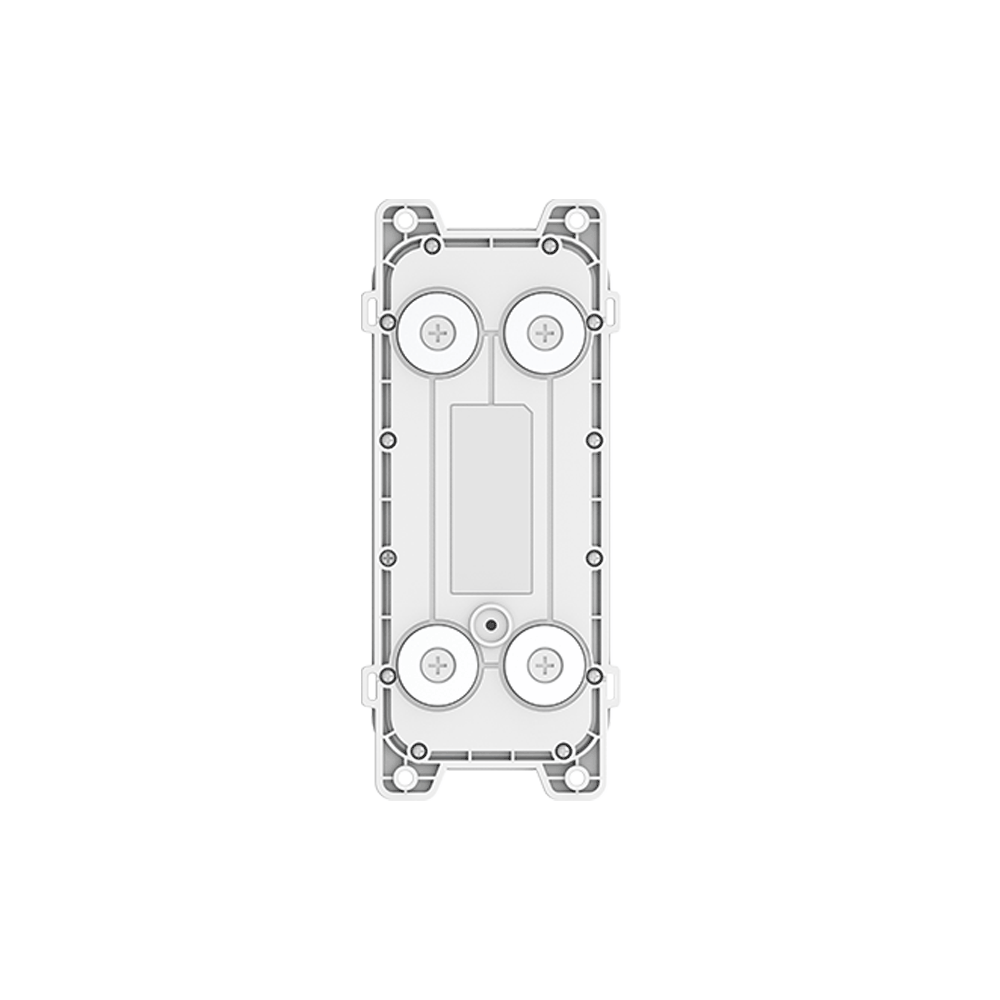

  • Easy installation without cradle (screws, magnets, straps)

Wireless Communication

  • Connectivity

    LTE Cat. 1 bis

  • Operating Frequency

    LTE FDD : B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
    LTE TDD : B34, B38, B39, B40, B41
    Optional: Only 1 part
    - 433MHz (SL2P)
    - 900MHz LoRa (SX1276)

  • Transmission Protocol

    TCP / UDP/ SMS

  • Bluetooth

    BLE 5.3 (2.4Ghz Support) *Bluetooth and WiFi is not concurrent operating.

  • Wi-Fi

    Wi-Fi scan support (2.4GHz)

GNSS

  • Receiver Type

    GPS (L1)
    GLONASS (L1OF)
    Glonass (E1)
    BeiDou (B1)
    QZSS and SBAS ranging

  • Positioning Accuracy

  • Update Rate

    1Hz

  • Cold Start (TTFF)

    33s

  • Warm Start (TTFF)

  • Hot Start (TTFF)

    1s

  • Tracking Sensitivity

    Tracking -161dBm / Reacquisition -156dBm / Acquisition -144dBm

Physical

  • Dimensions

    201 × 88 × 31 mm

  • Weight

    540g

Hardware (Interface)

  • I/O

  • CAN Port

  • LED Indicators

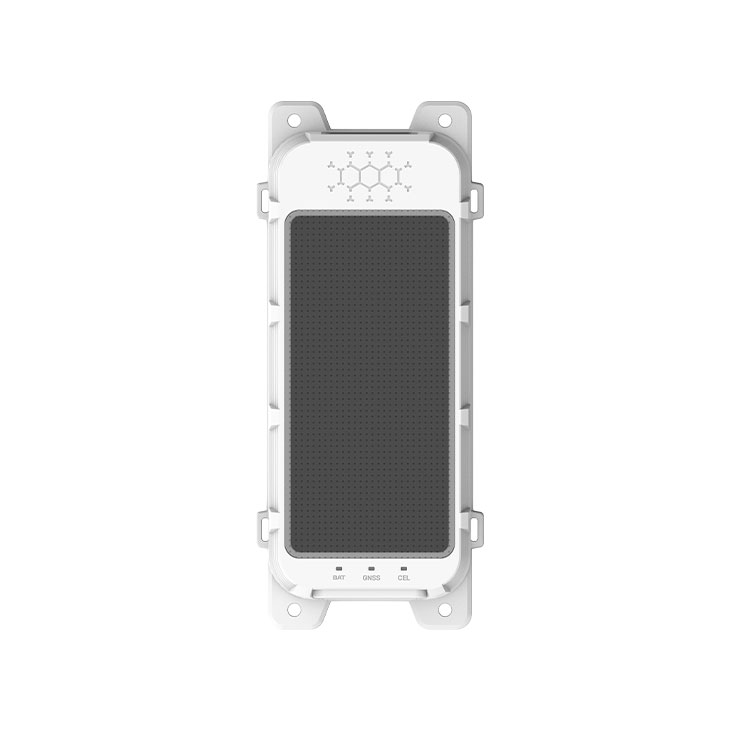

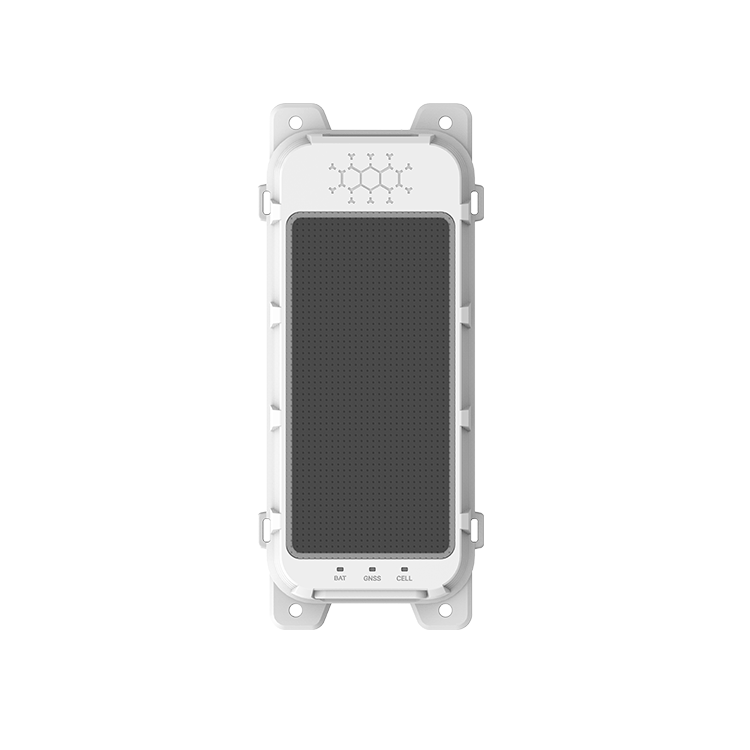

    BAT(Red/Orange/Yellow-Green), GNSS (Red), CELL(Blue)

  • Features

    TBD

  • Motion Sensor

    6-Axis Accelerometer (gyroscope + accelerometer)

  • User Interface

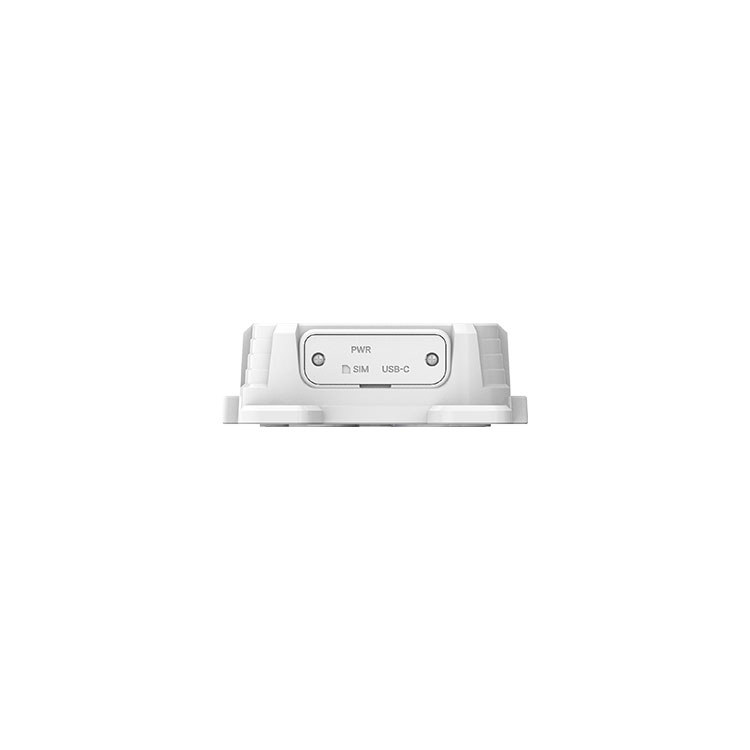

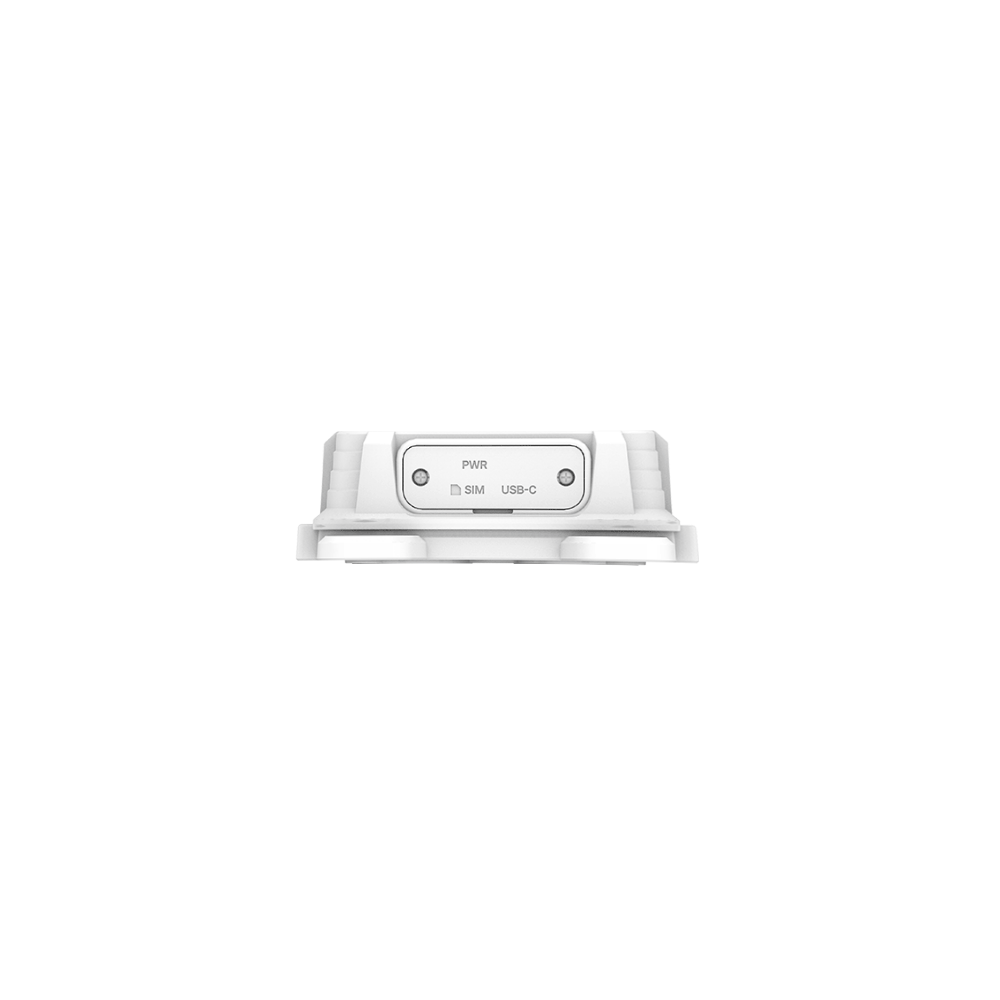

    SIM Card Slot, C-type port, On/Off button for Software, Self Sustaining Solar Power

  • SIM Card Type

    4FF (Nano SIM card)

Battery/Power

  • Battery

    Rechargeable Li-ion 3.7V / 12,000mAh

  • Power

    Battery-Operated

  • Power Supply

    USB Type-C, 5V/1A (recharger) / Solar panel: Max. 1.8W

  • Power Consumption

    TBD

Environmental

  • Dust & Water Resistance

    IP68

  • Operating Temperature

    -20˚C ~ +80˚C *Caution: Do not leave the vehicle under direct sunlight for a long time in hot weather. Prolonged exposure may cause the battery to overheat or explode.

  • Certifications

    FCC, CE (Planing)

  • Region

    Global

Camera

  • CPU

  • OS

  • Forward Camera

  • Inward Camera

  • Memory

  • Mobile App

  • ETC

  • Others

    Magnet_30mm

    • ST6952, ST4280, ST4230, ST4290(L), ST4335, ST4955
