Wireless Communication

• Connectivity

  LTE Cat. 1/2G FallBack

• Operating Frequency

  LTE FDD : B1, B2, B3, B4, B5, B7, B8, B28, B66
  GSM850 / EGSM900 / DCS1800 / PCS1900

• Transmission Protocol

  TCP / UDP

• Bluetooth

  BLE 5.3

• Wi-Fi

GNSS

• Receiver Type

  GPS & Glonass
  GPS L1 band(1575.42MHz)
  Glonass L1 band (1601.71MHz)
  SBAS : WAAS, EGNOS, MASA

• Positioning Accuracy

  +/- 3m CEP *50%,2D RMS, -130dBm, >6 Sats.

• Update Rate

  1Hz

• Cold Start (TTFF)

  < 35s / 15s with EASTM

• Warm Start (TTFF)

  < 30s / 5s with EASTM

• Hot Start (TTFF)

  < 1s

• Tracking Sensitivity

  Tracking: -167dBm / Reacquisition: -161dBm / Acquisition: -149dBm

Physical

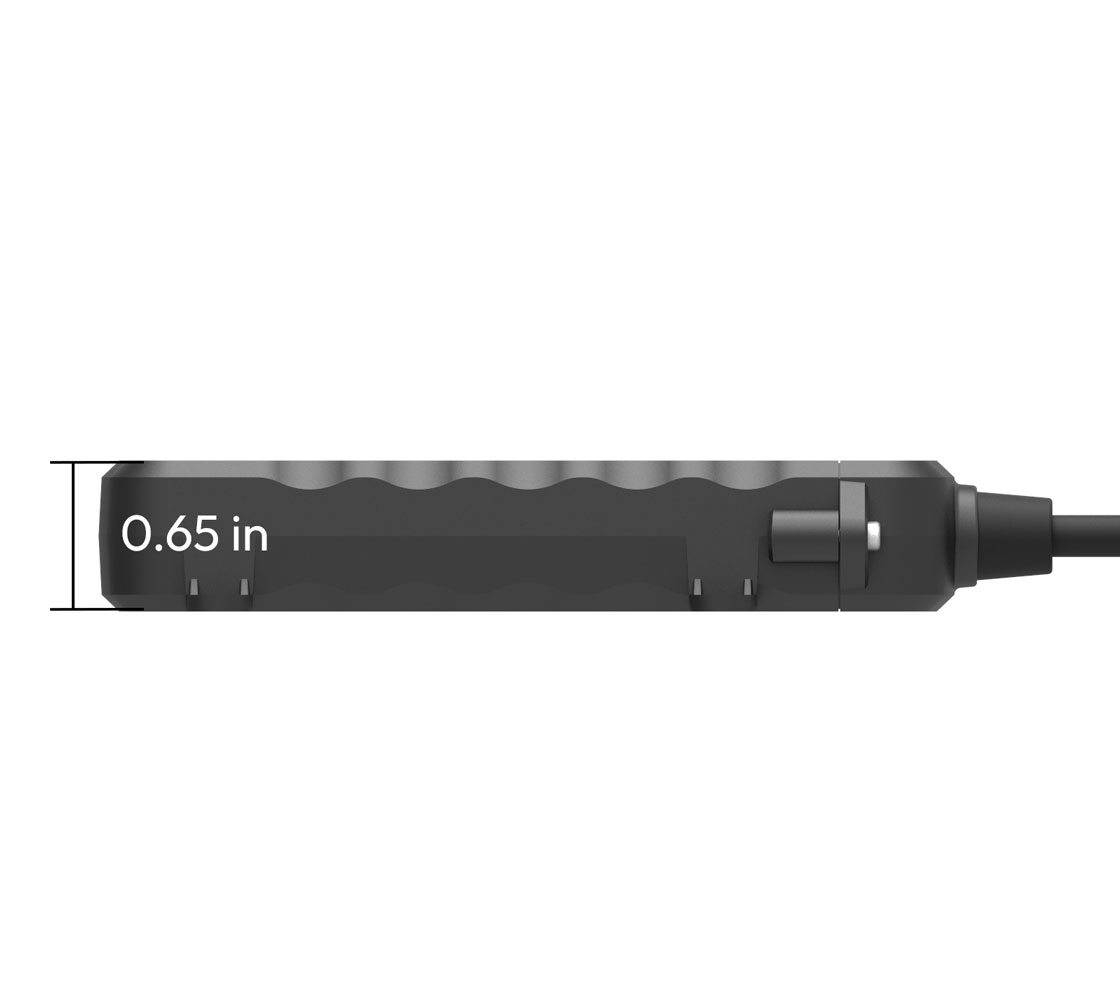

• Dimensions

  110 * 56.4 * 16.5 mm

• Weight

  63g

Hardware (Interface)

• I/O

  6pin (customized*)
  1 pin (Ignition/Input)
  1 Input+1 output (Short circuit for immobilizer)
  1 Output
  2pin (Ground, Power)

• CAN Port

• LED Indicators

  Network, GPS

• Features

  DPA (Driving Pattern Analysis)
  Data storage: up to 10,000 locations
  Power down: sleep or deep sleep (stopping communication)
  Geofencing: Circular(255) / Polygonal(30)
  Back-up Battery 280mAh
  Jamming Detection(*Optional)
  Driver’s pattern inform: Triggered by harsh braking, sudden acceleration or frequent lane change
  Security Alarm : Alert for Geo-fencing, Low main battery, backup battery’s defect, GPS defect, Route deviation, Over speed, Specific sensors triggered and Vehicle crash.
  Emergency for Panic button, Parking lock and Cut off main power.

• Motion Sensor

  3-Axis Accelerometer

• User Interface

• SIM Card Type

  Nano SIM (4FF)

Battery/Power

• Battery

  Rechargeable 3.7V, 280mAh (Li-ion)

• Power

  Wired, Back-up Battery

• Power Supply

  DC 8 ~ 90 V

• Power Consumption

  Typical: 31 mA (10 min reporting) @12V
  Sleep mode: less than 5 mA @12V
  Deep sleep mode: less than 3 mA @12V

Environmental

• Dust & Water Resistance

  IP68

• Operating Temperature

  -30˚C ~ +85˚C

• Certifications

  NOM

• Region

  LATAM
